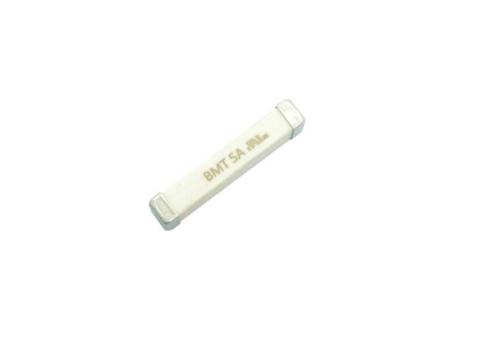

6032(6.0*32)方頭貼片保險絲
Description
The SMD6032 series is square Surface Mount fuses are designed for high-end cloud computing servers, telecom base station power supplies, block chain servers, and new energy vehicle battery management systems, ROHS compliant, Halogen Free and lead(Pb) exempts of the requirements of ROHS Directive(2002/95/EC), with U.S. (UL/CSA) safety agency approvals. Provide board level primary and secondary circuit protection in a wide variety of applications. With excellent inrush current withstanding capability, excellent reliability for thermal and mechanic shock, also have a high reliability and stable solder ability, the caps are available in gold/silver plated.
Features
? Available in ratings of 1 to 100A? High interrupting rating -600A@75VDC? Very low cold resistance,temperature rise, and voltage drop? High inrush/surge current withstand capability? Surface mountable high current fuse? UL 248-1 and UL 248-14 recognized? Conforms to IEC/EN 60127-1and IEC/EN 60127-7
Benefits
? Single fuse solution for high current application? Suitable for a wide variety of voltage requirement and application? Enhances power efficiency? Avoids nuisance opening due to high inrush and surge current inherent in the system? Compatible with high volume assembly requirements
Applications
? Voltage regulator module for PC server? Cooling fan system for PC server? Storage system power? Basestation power supply? Power tools
Material Details
|
NO.
|
Part Name
|
Material
|
|
1
|
End caps
|
Brass plated with gold/silver
|
|
2
|
Body
|
Ceramic Tube
|
|
3
|
Fuse
|
Alloy wire
|
|
4
|
Explosion proof sand
|
Quartz sand
|
Electrical Characteristics for Series
|
% of Ampere rating
|
OpeningTime
|
|
100%
|
4 hours, Minimum
|
|
200%
|
60 sec., Max.
|
Electrical Specifications by Item
|
目錄編號Catalog No.
|
額定電流Ampere Rating
|
額定電壓Voltage Rating
|
分?jǐn)嗄芰?/span>
Breaking Capacity
|
安規認證
Agency Approvals
|
|
UL
|
CSA
|
|
BMT3263.0.2
|
200mA
|
1000V/800V/750V/600V
500V/400V/350V/300V
250V/125V/80V
72V/63V/32V DC
|
250V/125V/AC/DC
|
10KA@300V350V400V500V600V750V800V
1000V AC/DC
1.5KA@250V125V
1KA@250V300V350V
400V500V AC/DC
1KA@32V
DC63V72V80V
|
●
|
●
|
|
BMT3263.0.25
|
250mA
|
●
|
●
|
|
BMT3263.0.3
|
300mA
|
●
|
●
|
|
BMT3263.0.315
|
315mA
|
●
|
●
|
|
BMT3263.0.375
|
375mA
|
●
|
●
|
|
BMT3263.0.5
|
500mA
|
●
|
●
|
|
BMT3263.0.63
|
630mA
|
●
|
●
|
|
BMT3263.0.8
|
800mA
|
●
|
●
|
|
BMT3263.1
|
1A
|
●
|
●
|
|
BMT3263.1.25
|
1.2
|
●
|
●
|
|
BMT3263.1.5
|
1.
|
●
|
●
|
|
BMT3263.1.6
|
1.6A
|
●
|
●
|
|
BMT3263.2
|
2A
|
●
|
●
|
|
BMT3263.2.5
|
2.
|
●
|
●
|
|
BMT3263.3
|
3A
|
●
|
●
|
|
BMT3263.3.15
|
3.1
|
●
|
●
|
|
BMT3263.3.5
|
3.
|
●
|
●
|
|
BMT3263.4
|
4A
|
●
|
●
|
|
BMT3263.5
|
3.5A
|
●
|
●
|
|
BMT3263.6
|
6A
|
●
|
●
|
|
BMT3263.7
|
7A
|
●
|
●
|
|
BMT3263.8
|
8A
|
●
|
●
|
|
BMT3263.10
|
10A
|
●
|
●
|
|
BMT3263.12
|
12A
|
●
|
●
|
|
BMT3263.15
|
1
|
●
|
●
|
|
BMT3263.16
|
16A
|
●
|
●
|
|
BMT3263.20
|
20A
|
●
|
●
|
|
BMT3263.25
|
2
|
●
|
●
|
|
BMT3263.30
|
30A
|
●
|
●
|
|
BMT3263.35
|
35A
|
80V/72V/63V/32V DC
|
●
|
●
|
|
BMT3263.40
|
40A
|
●
|
●
|
|
BMT3263.50
|
50A
|
●
|
●
|
|
BMT3263.60
|
60A
|
●
|
●
|
?
●DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃;
? ●Typical Pre-arching I2t are calculated at 10*In Current or 8ms.
Temperature Derating Curve
Notes:
1. Derating depicted in this curve is in addition to the standard derating of 20% for continuous operation.
Example:For continuous operation at 75 degrees celsius, the fuse should be derated as follows:I = (0.80)(0.85)IRAT= (0.68)IRAT
Soldering Parameters
|
Reflow Condition
|
Pb – Free assembly
|
|
Pre Heat
|
- Temperature Min (Ts(min)) 150°C
|
|
- Temperature Max (Ts(max)) 200°C
|
|
- Time (Min to Max) (ts) 60 – 120 secs
|
|
Average ramp up rate (Liquidus Temp (TL) to peak
|
3°C/second max.
|
|
TS(max) to TL - Ramp-up Rate
|
3°C/second max.
|
|
Reflow
|
- Temperature (TL) (Liquidus) 217°C
|
|
- Temperature (tL) 60 – 90 seconds
|
|
Peak Temperature (TP)
|
260+0/–5 °C
|
|
Time within 5°C of actual peak Temperature (tp)
|
20 – 40 seconds
|
|
Ramp-down Rate
|
5°C/second max.
|
|
Time 25°C to peak Temperature (TP)
|
8 minutes max.
|
|
Do not exceed
|
260°C
|
|
Wave Soldering Parameters
|
260°C Peak Temperature,3 seconds max.
|
Dimensions and Structure
Product Characteristics
|
編號
NO.
|
項目
Item
|
內容
Content
|
參考標準
Reference standards
|
|
1
|
產品標識
Product Marking
|
Brand, Ampere Rating
|
marking standards
|
|
2
|
工作溫度
Operating Temperature
|
-55°C to 125°C
|
–55oC to 125oC with proper derating
|
|
3
|
可焊性
Solderability
|
T=240°C±5°C , t=3sec±0.5sec,
Coverage≥95%
|
MIL-STD-202, Method 208
|
|
4
|
耐焊接熱
Resistance to Soldering Heat
|
10 sec at 260°C
|
MIL-STD-202, Method 210, Test condition B
|
|
5
|
絕緣阻抗
Insulation Resistance (after Opening)
|
10,000 ohms minimum
5 cycles, -65°C / +125°C, 15 minutes at each extreme
|
MIL-STD-202, Method 302, Test Condition A
|
|
6
|
熱沖擊
Thermal Shock
|
MIL-STD-202, Method 107, Test Condition B
|
|
7
|
機械沖擊
Mechanical Shock
|
100G’s peak for 6 milliseconds,
3cycles
|
MIL-STD-202, Method 213, Test I
|
|
8
|
振動試驗
Vibration
|
0.03”amplitude, 10-55 Hz in 1
min. 2hrs each XYZ=6hrs
|
MIL-STD-202, Method 201
|
|
9
|
耐濕性
Moisture Resistance
|
10 cycles
|
MIL-STD-202, Method 106
|
|
10
|
鹽霧試驗
Salt Spray
|
5% salt solution, 48hrs
|
MIL-STD-202, Method 101, Test Condition B
|
Packaging
2,000 pcs in 13 inches dia. reel, 24mm wide tape, EIA Standard 481
