TR5 塑膠殼 快斷 微型保險絲
Physical map：
Description
TR5®,sub-miniature,fast-acting type, 250V rated fuses, designed in accordance to IEC 60127-3..
Features
? Lead-free ? Reduced PCB space requirements ? Direct solderable or plug-in versions ? Internationally approved
? Low internal resistance ?Shock safe casing ? Vibration resistant ? Halogen free ? Available from 40mA to 6.3A
Applications
? Battery Charges ? Consumer Electronics ? Power supplies ? Industrial Controllers
|
% of Ampere Rating
|
Opening Time
|
|
150%
|
1 Hour, Min.
|
|
210%
|
30 Minutes, Max..
|
|
275%
|
10 ms, Min. ; 3 Sec., Max.
|
|
400%
|
3 ms, Min. ; 300 ms, Max.
|
|
1000%
|
20 ms, Max.
|
Electrical Characteristic Specifications by Item
Rated
Current
|
Amp
Code
|
Voltage
Rating
|
Breaking
Capacity
|
Voltage Drop
1.0×IN max.
(mV)
|
Power Dissipation
1.5×IN max. (mW)
|
Melting Integral
10×INmin. (A2s)
|
Agency Approvals
|
|
VDE
|
S
|
UR
|
CCC
|
PSE
|
|
0040
|
40mA
|
250V
|
35 A/ 250VAC1
50-60 Hz cos ? = 1.0
|
900
|
100
|
0.0002
|
G
|
X
|
|
|
|
|
0050
|
50mA
|
250V
|
320
|
80
|
0.00035
|
X
|
X
|
X
|
X
|
|
|
0063
|
63mA
|
250V
|
350
|
100
|
0.0005
|
X
|
X
|
X
|
X
|
|
|
0080
|
80mA
|
250V
|
370
|
120
|
0.0014
|
X
|
X
|
X
|
X
|
|
|
0100
|
100mA
|
250V
|
600
|
130
|
0.0038
|
X
|
X
|
X
|
X
|
|
|
0125
|
125mA
|
250V
|
550
|
172
|
0.0066
|
X
|
X
|
X
|
X
|
|
|
0160
|
160mA
|
250V
|
500
|
165
|
0.014
|
X
|
X
|
X
|
X
|
|
|
0200
|
200mA
|
250V
|
465
|
190
|
0.03
|
X
|
X
|
X
|
X
|
|
|
0250
|
250mA
|
250V
|
400
|
250
|
0.051
|
X
|
X
|
X
|
X
|
|
|
0315
|
315mA
|
250V
|
380
|
250
|
0.1
|
X
|
X
|
X
|
X
|
|
|
0400
|
400mA
|
250V
|
120
|
135
|
0.025
|
X
|
X
|
X
|
X
|
|
|
0500
|
500mA
|
250V
|
120
|
155
|
0.042
|
X
|
X
|
X
|
X
|
|
|
0630
|
630mA
|
250V
|
115
|
200
|
0.076
|
X
|
X
|
X
|
X
|
|
|
0800
|
800mA
|
250V
|
120
|
310
|
0.12
|
X
|
X
|
X
|
X
|
|
|
1100
|
1.00A
|
250V
|
110
|
310
|
0.2
|
X
|
X
|
X
|
X
|
X
|
|
1125
|
1.25A
|
250V
|
100
|
360
|
0.31
|
X
|
X
|
X
|
X
|
X
|
|
1160
|
1.60A
|
250V
|
100
|
600
|
0.53
|
X
|
X
|
X
|
X
|
X
|
|
1200
|
2.00A
|
250V
|
85
|
500
|
0.98
|
X
|
X
|
X
|
X
|
X
|
|
1250
|
2.50A
|
250V
|
80
|
660
|
1.8
|
X
|
X
|
X
|
X
|
X
|
|
1315
|
3.15A
|
250V
|
90
|
950
|
3.1
|
X
|
X
|
X
|
X
|
X
|
|
1400
|
4.00A
|
250V
|
40 A / 250 VAC
|
80
|
920
|
6.7
|
X
|
X
|
X
|
X
|
X
|
|
1500
|
5.00A
|
250V
|
50 A / 250 VAC
|
80
|
1000
|
12.00
|
X
|
X
|
X
|
X
|
X
|
|
1630
|
6.30A
|
250V
|
63 A / 250 VAC
|
70
|
1200
|
24.00
|
G
|
X
|
X
|
|
|
Note: Per UL, approved breaking capacity is 50 A at 250 V.
Temperature Derating Curve

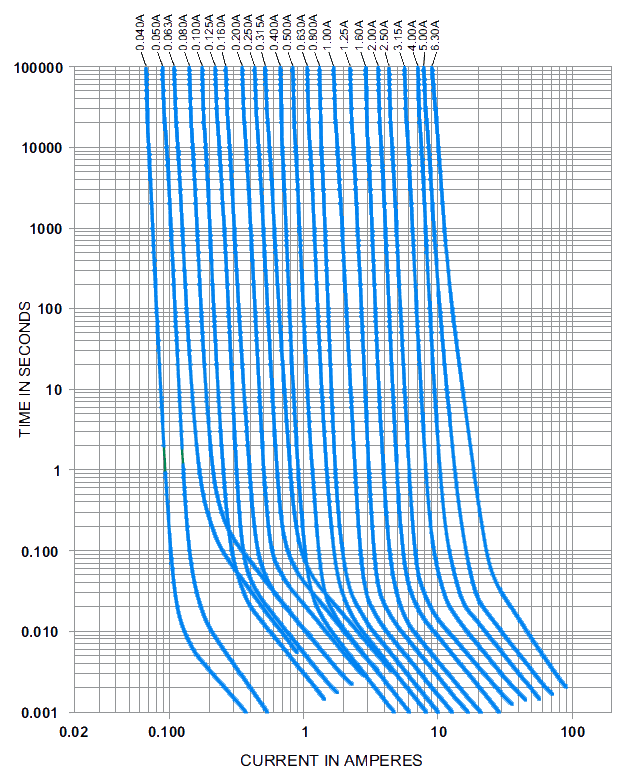

Average Time Current Curves
Product Characteristics
|
Materials
|
Base/Cap: Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0 Round Pins: Copper, Tin-plated
|
|
Lead Pull Strength
|
10 N (IEC 60068-2-21)
|
|
Solderability
|
260oC, ≤ 3 sec. (Wave) 350oC, ≤ 3 sec. (Soldering iron)
|
|
Soldering Heat Resistance
|
260oC, 10 sec. (IEC 60068-2-20) 350oC, ≤ 3 sec. (Soldering iron)
|
|
Operating Temperature
|
–40oC to +85oC (consider de-rating)
|
|
Climatic Category
|
–40oC to +85oC/21 days (EN 60068-1, -2-1, -2-2, -2-78)
|
|
Stock Condition
|
+10 oC to +60 oC Relative humidity ≤ 75% yearly average, without dew, maximum value for 30 days - 95%
|
|
Vibration Resistance
|
24 cycles at 15 min. each(EN 60068-2-6)10–60 Hz at 0.75 mm amplitude 60–2000 Hz at 10 g acceleration
|
Dimensions
Packaging
|
packaging Option
|
packaging Specification
|
Quantity
|
|
12mm Tape and Reel
|
N/A
|
1000
|
